MA1352WN Industrial Micro PC
Compact, durable for space-saving and enhanced computing applications
The MA1352WN features compact, robust designs and powered by the high-performance, energyefficient Intel® N250 processor. Combined with DT Research’s application-specific software, MA1352WN provide digital signage, cloud computing, or embedded controller computing solutions. With both DVI and DisplayPort++ connectors for full-HD video and optimal display experience, the MA1352WN powers displays with dynamic content while communicating with the server from remote and local locations for updates.
Features
- Intel® N250 processor
- Microsoft® Windows® 11 IoT Enterprise operating system
- Outstanding Full-HD/4K video performance with low power consumption
- Intuitive, web-based remote content and device administration
- Compact size for ease in installation and mounting
- USB TV Tuner (ATSC/ Clear QAM) with video capture (S-video/composite inputs)
- Support for numerous media formats (e.g., images, videos, Flash, URL, RSS)
Major Options
- Wireless Networking
Specifications
System
-
CPU
Intel® N250 4 Core (up to 3.80 GHz)
-
RAM
8GB
-
Storage
256GB to 1TB
-
Operating System
Microsoft® Windows® 11 IoT Enterprise
-
Display Resolution
Up to 4096 x 2160 @60Hz
I/O Ports
-
Video-out
2 x HDMI (2.1) , 1 x Display Port (1.4)
-
Audio Jack
1 x 3.5mm phone jack
-
USB Ports
USB 2.0 x 2, USB 3.0 x 2
-
Ethernet
RJ45 connector for Ethernet x 1
-
DC-in
1; 1.7 mm DC in
Mechanical and Environmental
-
AC/DC Adapter
Input: 100-240V AC; Output: 19V DC
-
Fan/ Fanless
Fanless
-
AC/DC Adapter Regulatory
UL, CE, PSE
-
Power Consumption
Max: 30.55W (47.13VA); Idle: 5.32W (8.21VA)
-
Enclosure
Aluminum + steel
-
Dimensions (H x W x D)
2.16 x 5.82 x 6.5 in/ 55 x 148 x 165.1 mm
-
Weight
2.9 lbs/ 1316 g
-
Regulatory
FCC Class B, CE, C-Tick, RoHS compliant
-
VESA Mounting Bracket
Included
-
Temperature
Operation: 0°C to 40°C; Storage: -20°C to 60°C
-
Humidity
0% to 90% non-condensing
MAJOR OPTIONS SPECS
-
Network Interface
10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11a/b/g/n
-
HD Video Capture USB Stick
Video capture USB dongle with S-video/ composite inputs

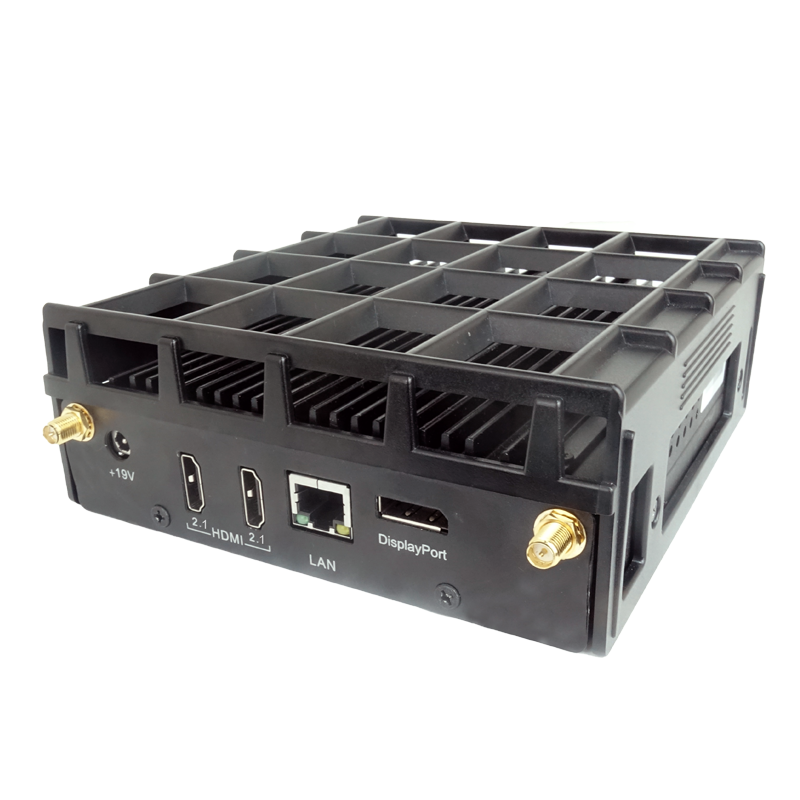

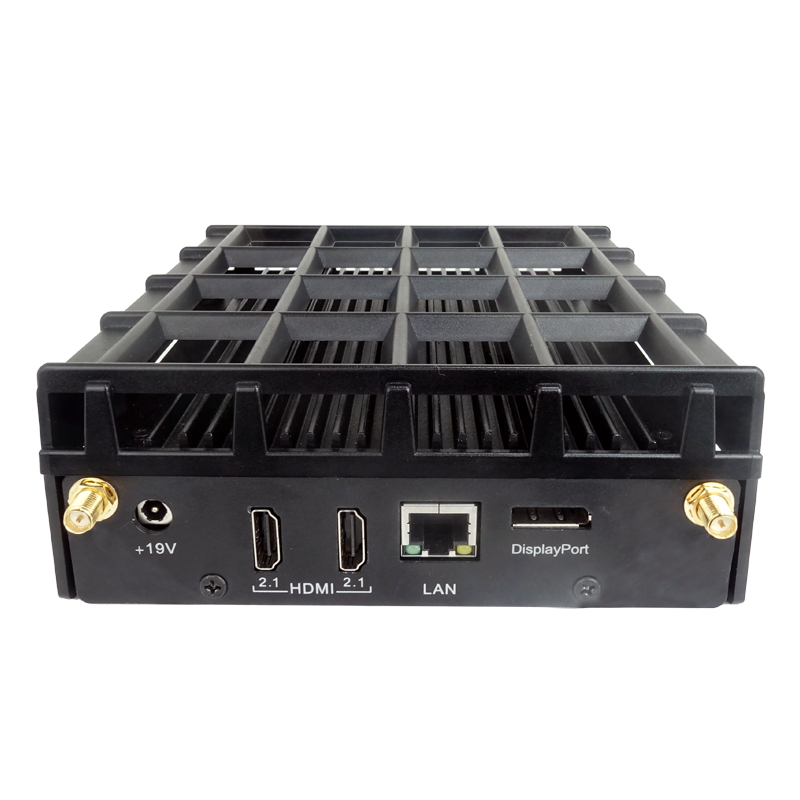

Product Pictures
